Automated Container Alignment Before Packaging

Challenge

Finished product containers arrive from the conveyor in random order and orientation. An operator manually reorients and feeds each container to the packaging machine.

Manual monotonous work at high line speeds
Human error causes misses and line stoppages
Operator speed limits packaging machine throughput
Hard to scale when line speed increases

Solution

Machine vision-based system: camera detects the position and orientation of each container on the conveyor, algorithm controls the actuator for precise alignment before the packaging machine.

Detection of arbitrary container positions on conveyor
Determination of required orientation and correction calculation
Automatic alignment with specified spacing
Real-time operation without line stops
Multiple actuator configurations for different requirements

Diagrams

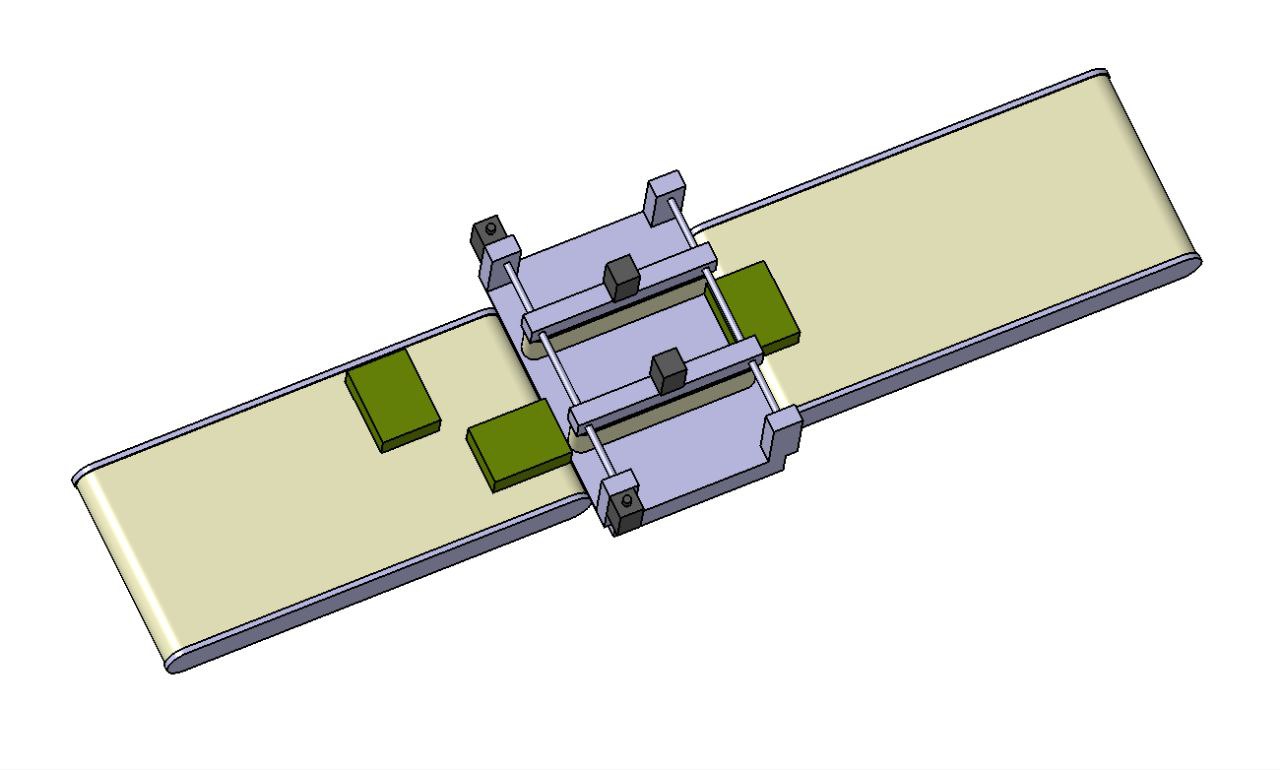

Conveyor system

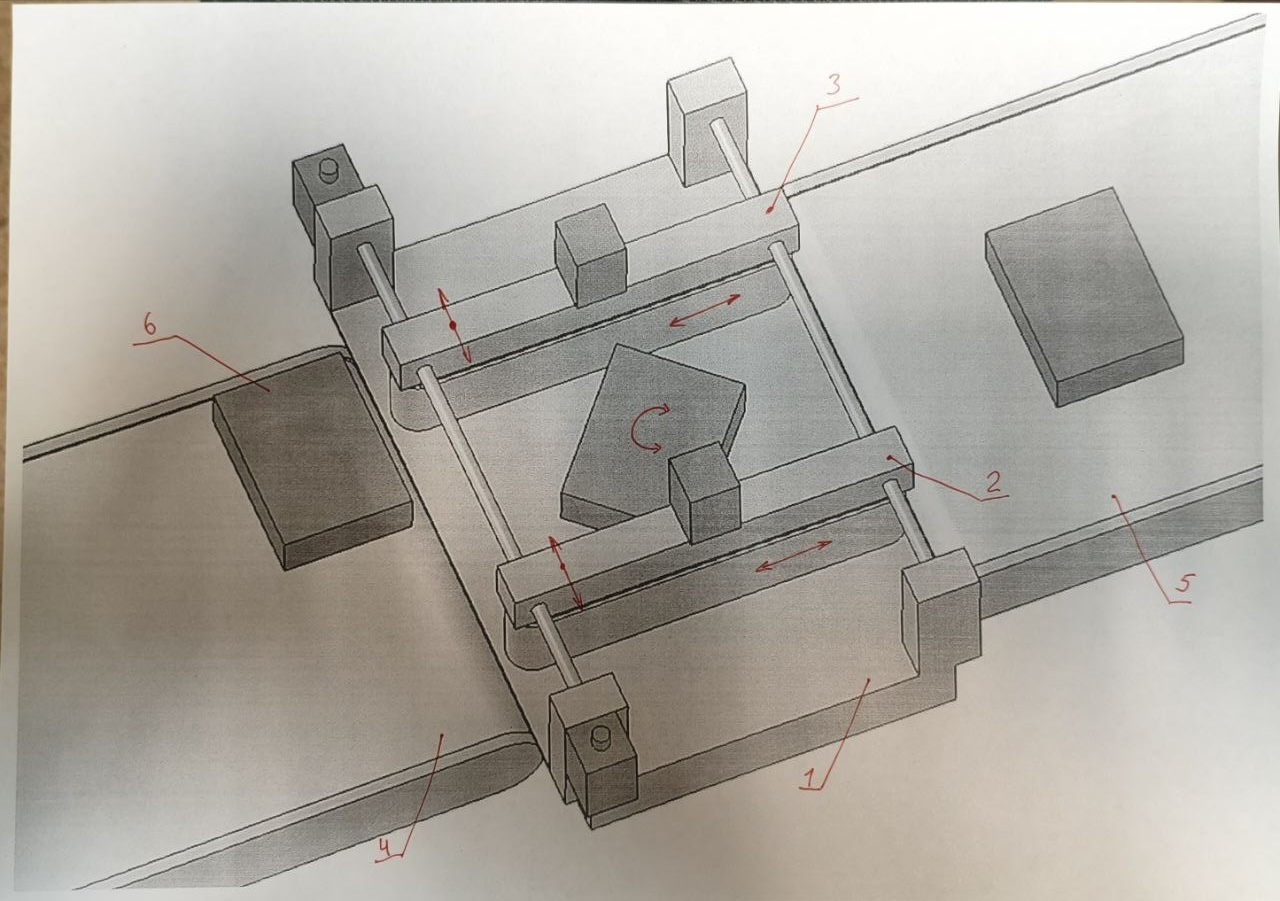

Actuator mechanism

Key Advantages

⚡

High throughput

System operates at full packaging machine speed without manual labor bottleneck.

🔄

Configuration flexibility

Supports containers of different sizes and shapes, configurable for each line.

🔌

Line integration

Installed into existing conveyor without production shutdown.

📊

Production analytics

Automatic throughput logging and stoppage recording.

Technologies

Machine vision — position and orientation detection
Industrial camera + controller
Pneumatic / servo-driven actuator
PLC for conveyor line control
Packaging machine integration
